Omnidirectional 15 Watts Jamming Unit
Frequency range
1.1–1.6 GHz
Power output
15 watts
Jamming distance
Min. 2.5 km (Line of Sight)
Activation
Manual or remote ON/OFF
Jamming ON time
Adjustable 5–30 minutes
Unit size
20×30×40 cm (incl. 6 omni antennas and UHF RX)
Weight
~ 5 kg
Power source
12–28 V DC
Deployment
Weather-resistant casing for outdoor use

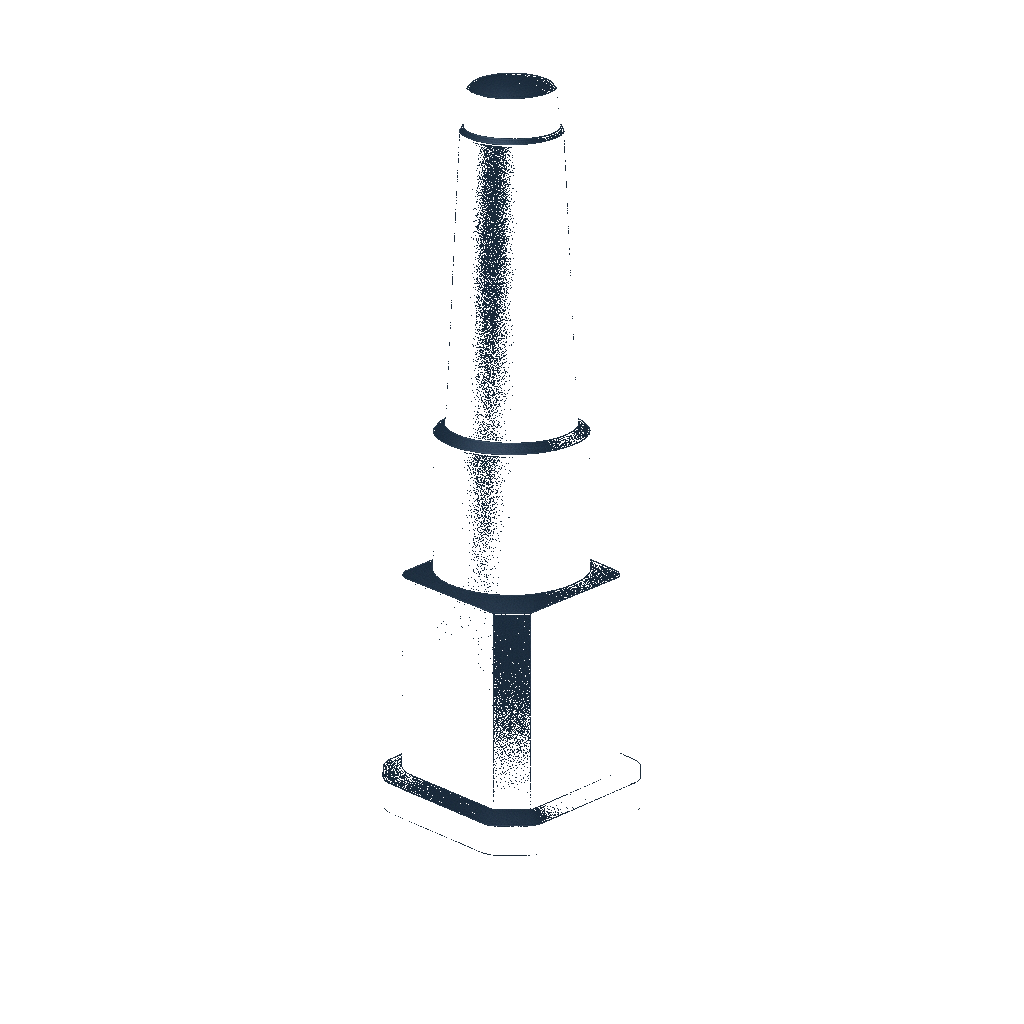

Vertical direction 300 Watts Jamming Unit
Frequency range
1.1–1.6 GHz
Power output
300 watts
Jamming distance
50–70 km (Line of Sight)
Activation
Remote ON/OFF
Jamming ON time
Adjustable 5–30 minutes
Unit size
20×30×40 cm (without 6 directional antennas)
Weight
~ 7 kg
Power source
28 V DC
Deployment
Weather-resistant casing for outdoor use
Patent abstract
A method and system for the rapid and cost effective deployment and operation of a geographically dispersed GNSS RF jammers array, with a deployed geometry of a Cartesian X,Y or Polar R/Theta grids, with a denser first and/or second line perimeter, for the purpose of jamming and defeating satellite based GNSS low flying guided munitions, including when equipped with CRPA anti jam antenna, by degrading their coordinates precision.
